Weight 172lb (78.02Kg)

Features View

J978CH3 CAT Caterpillar Haul Truck Seat

SELECT YOUR SEAT

		$2,980.00 USD J978CH3 Black/Grey Cloth 24 Volt Air Suspension 3 Point Double Retractable Harness CAT Seat 585422C24DLHCAT Adjustable Upper Double Locking Slide Rails Air Suspension Seat.

		None of the above This field is optional...

Let us Help! What are you installing this seat in?

$0 Base Price

+ $NaN SELECT YOUR SEAT

+ $NaN Let us Help! What are you installing this seat in?

+ $0 Price Modifiers

+ $0 Subtotal

Features

High Adjustable Backrest
Left Hand Side Control for Recline Adjustment
Adjustable Mechanical Lumbar
Adjustable Headrest / Height and Tilt
Document Holder
11.5° Seat Tilt Adjustment in 6 Positions
60mm Seat Cushion Length Adjustment in 5 Positions
Heavy Duty 24 Volt Air Suspension with Double Dampers
Up to 230kg (507lbs) Manual Weight Adjustment
100mm (4") Suspension Stroke
Adjustable Upper Double Locking Slide Rails
3 Point 2" Double Retractable Shoulder Seat Belt With Open Circuit / Safety Switch
Adjustable External Tethers
24 Volt Seat and Back Cushion Heater Kit
Adjustable 3.5" Left and Right Hand Armrest

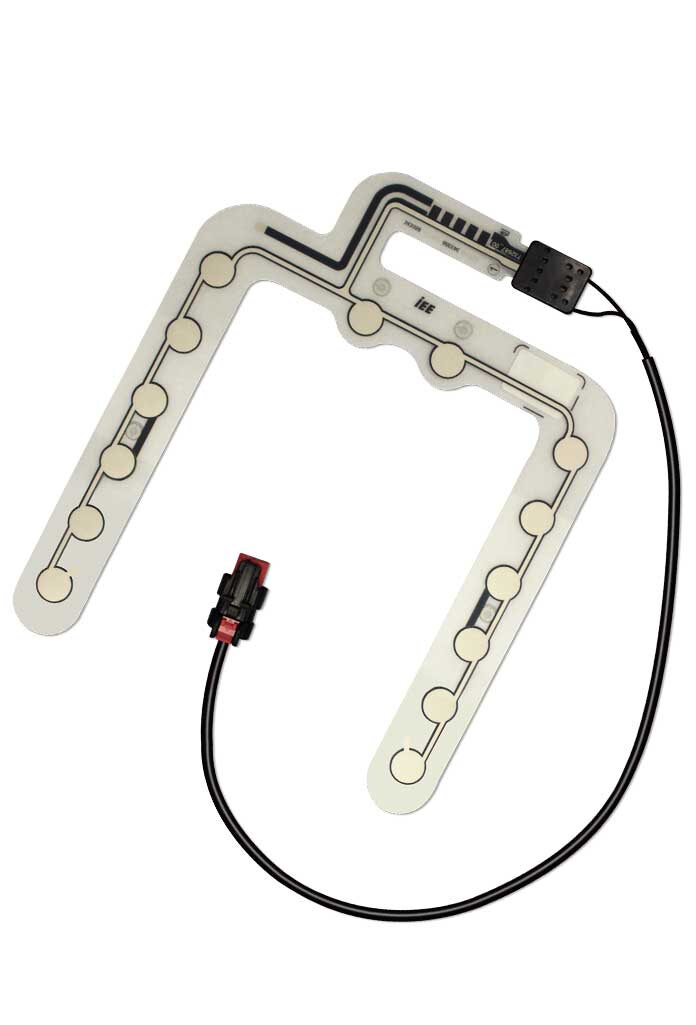

Operator Presence Switch
24 Volt Seat & Back Cushion Heater Kit
Universal Mounting Plates
Deutsch Connectors on all wiring for CAT System

Bolt Pattern

Mounting Plates (88059) Shipped With Seat
Side to Side - Adjustable From a Minimum of 346mm (13 5/8") to a Maximum of 467mm (18 3/8")
Front to Back - Various up to 406 mm (16")

Industry Standards

Operator Seat Vibration: ISO 7096
Flammability: FMVSS 302

Replacement For

Cat Seat Group Number: 309-5350, 355-6681, 358-3854, 358-3856, 362-3442, 384-6165, 385-7826, 385-7827
