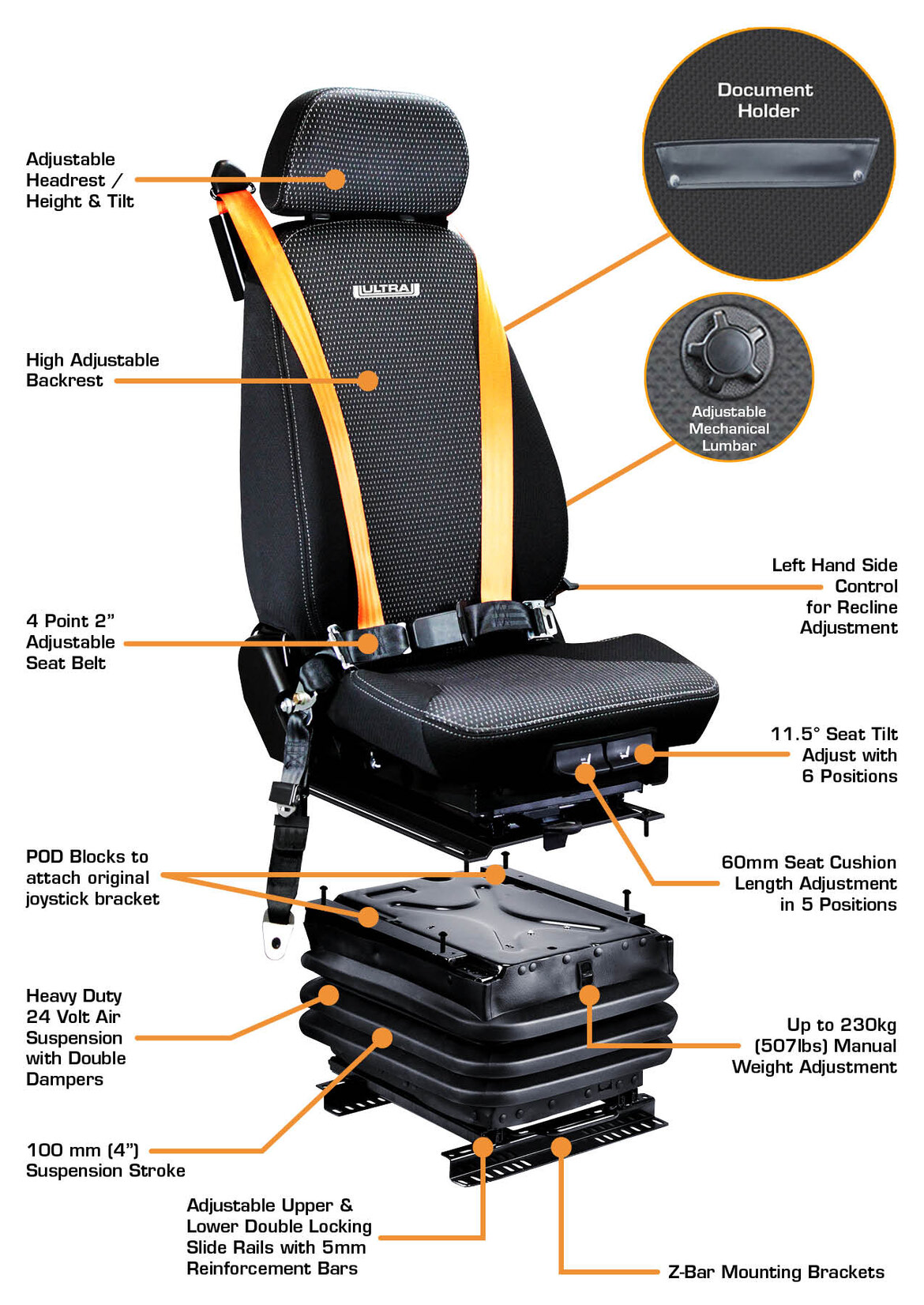

Features
- High Adjustable Backrest
- Left Hand Side Control for Recline Adjustment
- Adjustable Mechanical Lumbar
- Adjustable Headrest / Height and Tilt
- Document Holder
- 11.5° Seat Tilt Adjustment in 6 Positions
- 60mm Seat Cushion Length Adjustment in 5 Positions

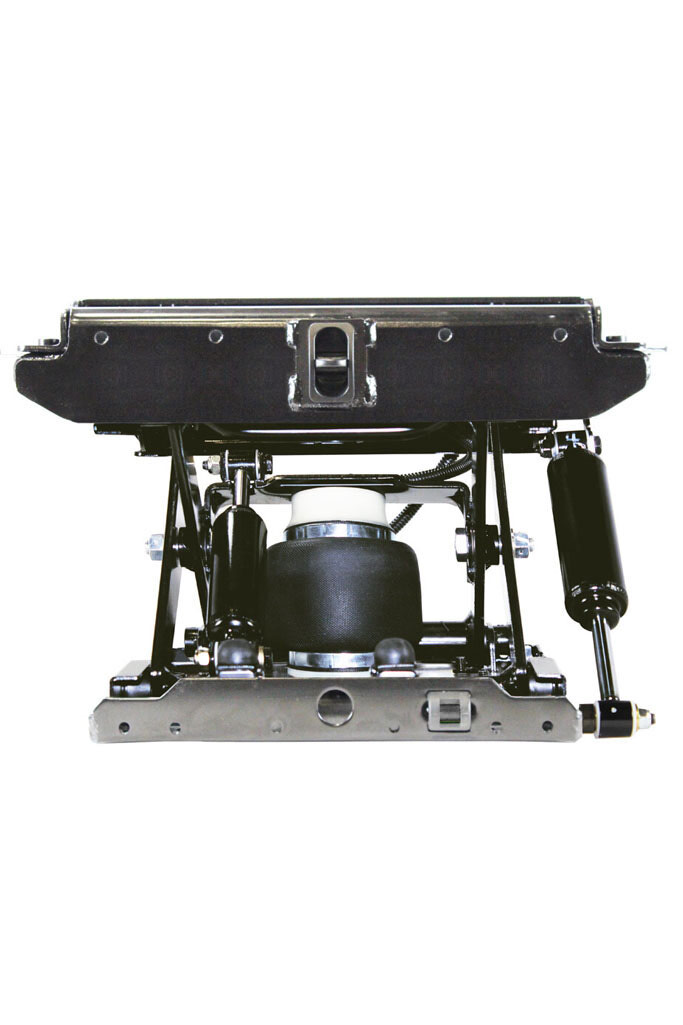

- Heavy Duty 24 Volt Air Suspension with Double Dampers
- Up to 230kg (507lbs) Manual Weight Adjustment
- 100mm (4") Suspension Stroke

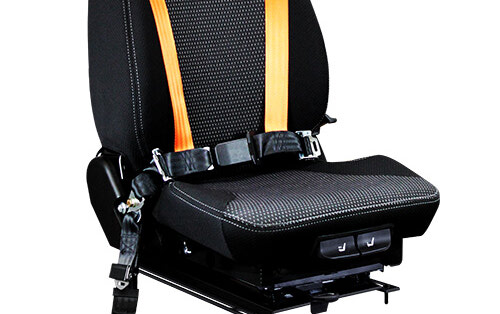

- 4 Point 2” Adjustable Seat Belt
- Adjustable External Tethers
- Adjustable Upper & Lower Double Locking Slide Rails

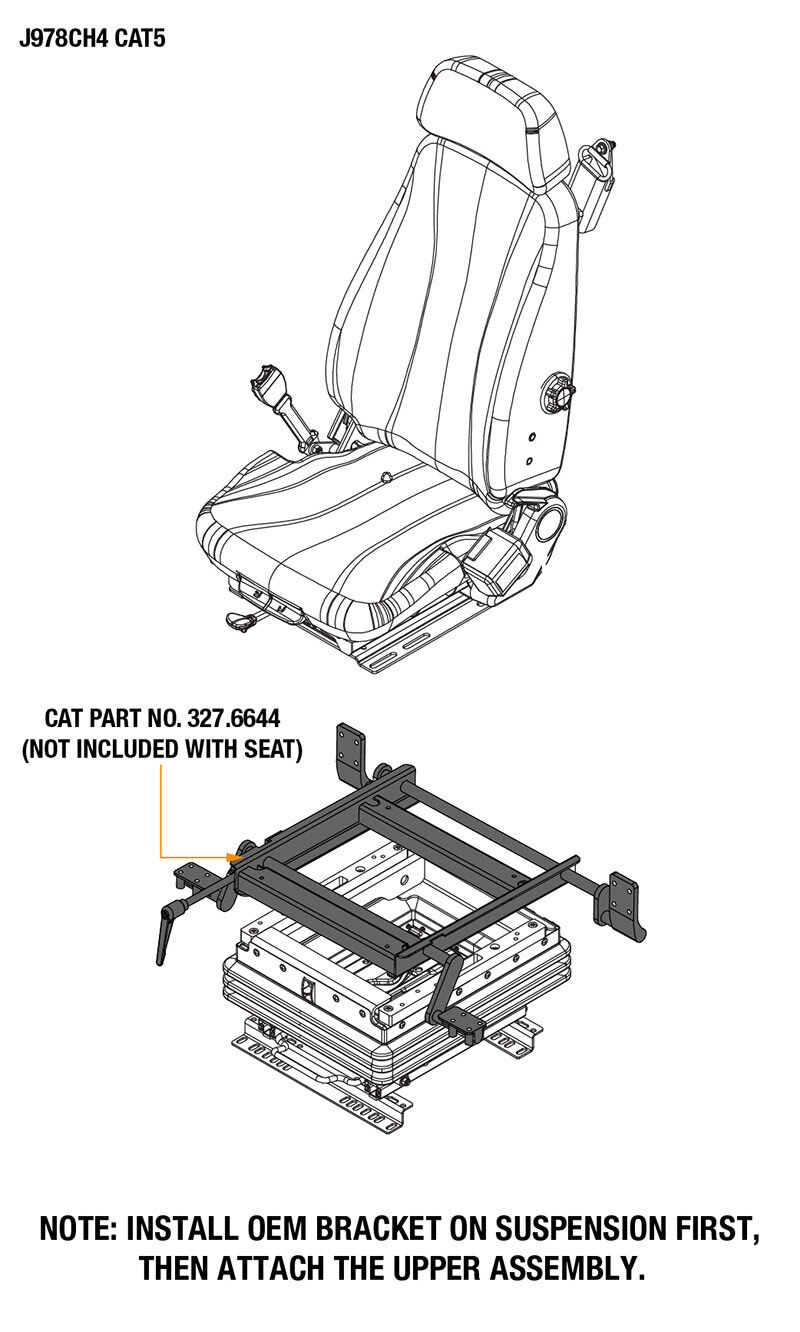

- Z-bar Mounting Brackets
- POD Blocks to Attach to Original Joystick Bracket
Bolt Pattern
- Adjustable External Tethers
- 280mm (11") Side to Side
- 305mm (12") Front to Back
- Z-Bar Mounting Brackets Shipped with Seat (See Z-Bar Dimensions Download for Mounting Options)
Industry Standards
-
Operator Seat Vibration: ISO 7096
-
Flammability: FMVSS 302
Replacement For
- Caterpillar Seat Group Number: 327-6500
- Can Be Used as as Replacement For: 327-6500, 327-6501, 327-6506, 327-6507
