J978CH4 JDSK - 4 Point Seat Belt John Deere Skidder Seat

Features

• High Adjustable Backrest
• Left-Hand Side Control for Recline Adjustment
• Adjustable Mechanical Lumbar
• Adjustable Headrest / Height and Tilt
• Document Holder
• 11.5° Seat Tilt Adjustment in 6 Positions
• 60mm Seat Cushion Length Adjustment in 5 Positions
• Heavy Duty 24 Volt Air Suspension with Double Dampers (One Adjustable)
• Up to 230kg (507lbs) Manual Weight Adjustment
• 100mm (4") Suspension Stroke
• Dual Adjustable Upper Double Locking Slide Rails
• 4 Point 2" Adjustable Seat Belt

• Joystick Arm Brackets (Both Sides)

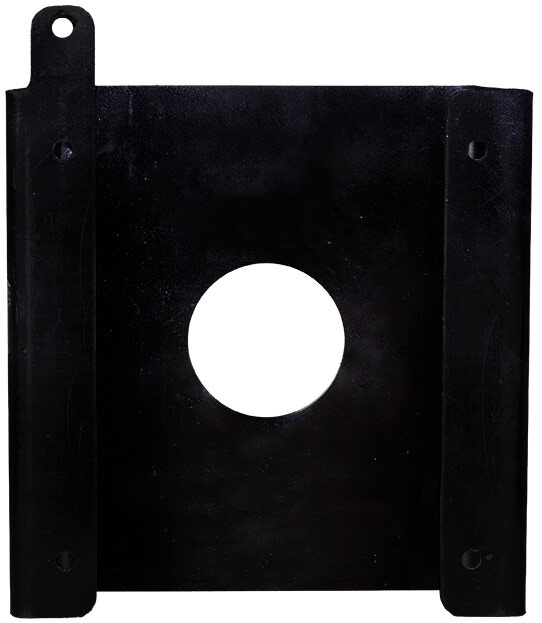

• Seat Base
• 360° Degree Turntable

Bolt Pattern

• Side to Side - 280mm (11")

• Front to Back - 280mm (11")

Industry Standards

• Operator Seat Vibration: ISO 7096
• Flammability: FMVSS 302

Replaces John Deere Seat

• Model Numbers
  • 640L, 643L, 648L, 748L, 843L, 848L, 948L

• Group Numbers
  • AT401631, AT415575, AT467191, AT467193
