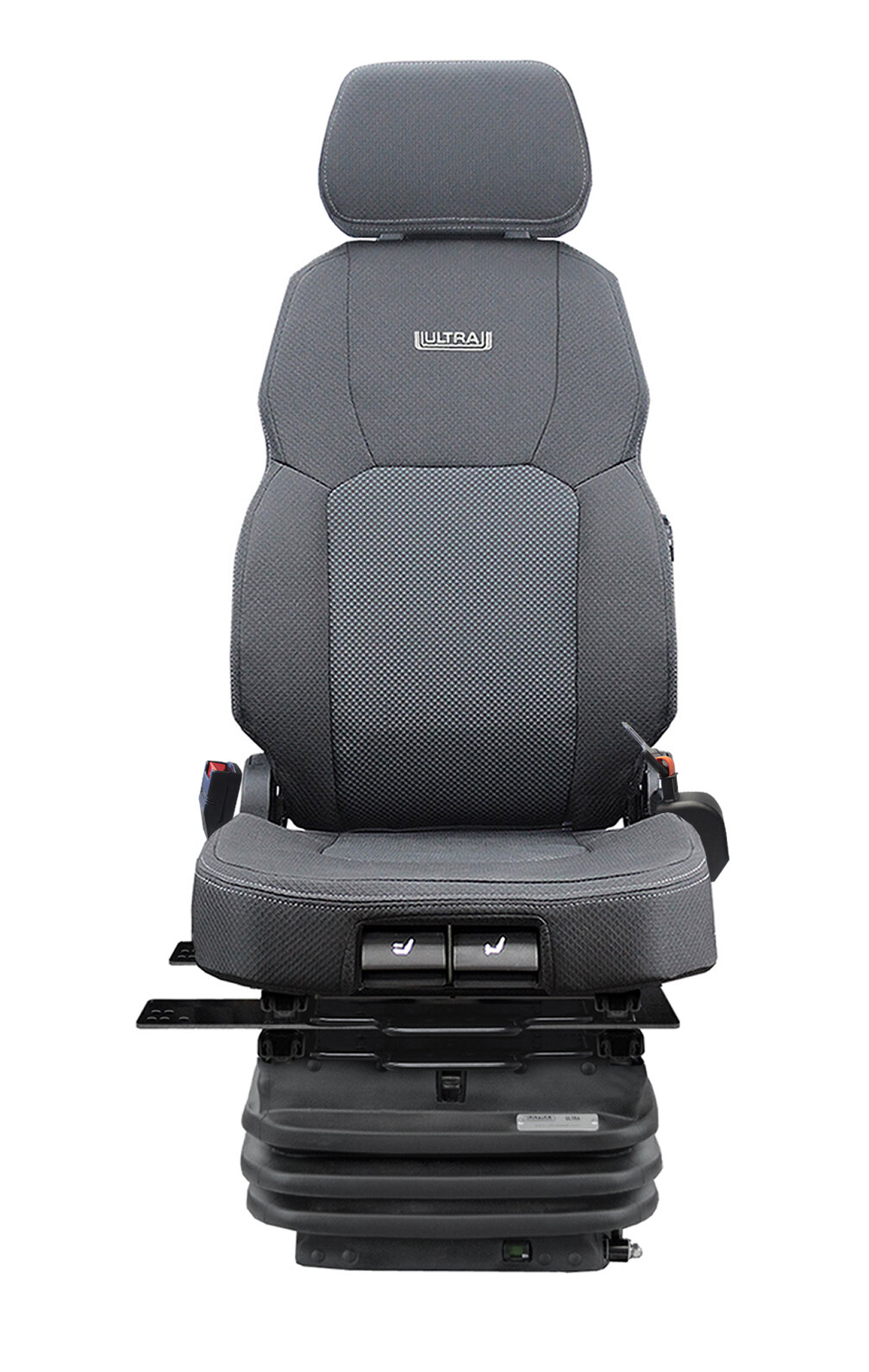

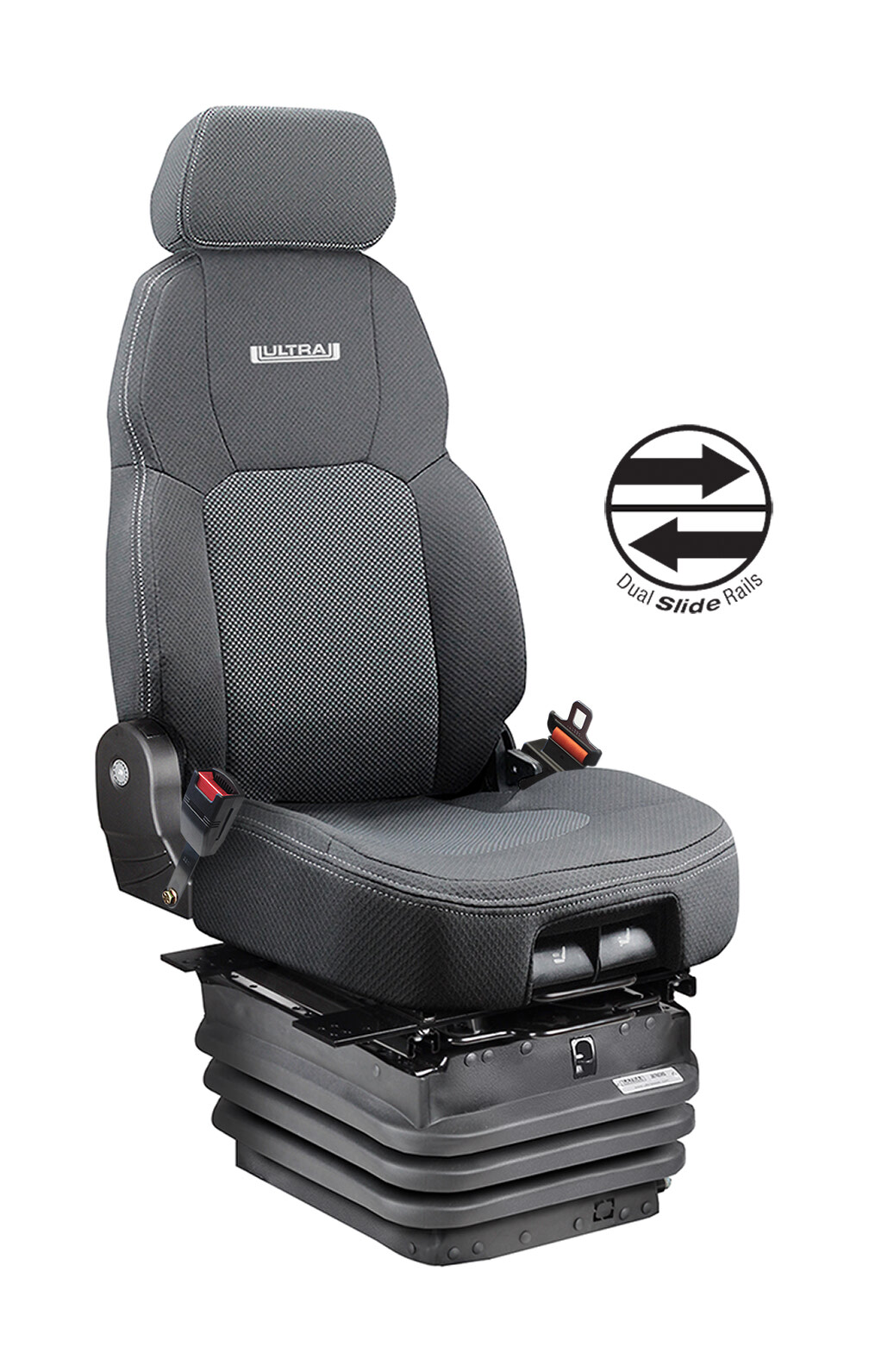

V832 JD3 III Wheel Loader Seat With Joy Stick Controls In Right Hand (Pod) Bracket

SELECT YOUR SEAT

		$1,706.67 USD V832 JD3 III Mechanical Suspension Seat 580599

		None of the above This field is optional...

SELECT YOUR SEAT BELT

		$160.00 USD 2 inch Retractable Seat Belt 81065 Suited For Most Seat Models.

		$210.67 USD 3 inch Retractable Seat Belt 81067 Suited For Most Seat Models.

		None of the above This field is optional...

SELECT YOUR ALTERNATE MOUNTING BRACKETS

		$114.67 USD Universal Mounting Plates - (Pair) 880-59 88059 Suited for most applications that require a wide side to side mounting pattern. Increase side to side pattern by a minimum of 3.5in to a maximum of 8in (per mounting bar / each side). Front to back mounting pattern is various to a maximum 406mm (16in).

		None of the above This field is optional...

Let us Help! What are you installing this seat in?

$0 Base Price

+ $NaN SELECT YOUR SEAT

+ $NaN SELECT YOUR SEAT BELT

+ $NaN SELECT YOUR ALTERNATE MOUNTING BRACKETS

+ $NaN Let us Help! What are you installing this seat in?

+ $0 Price Modifiers

+ $0 Subtotal

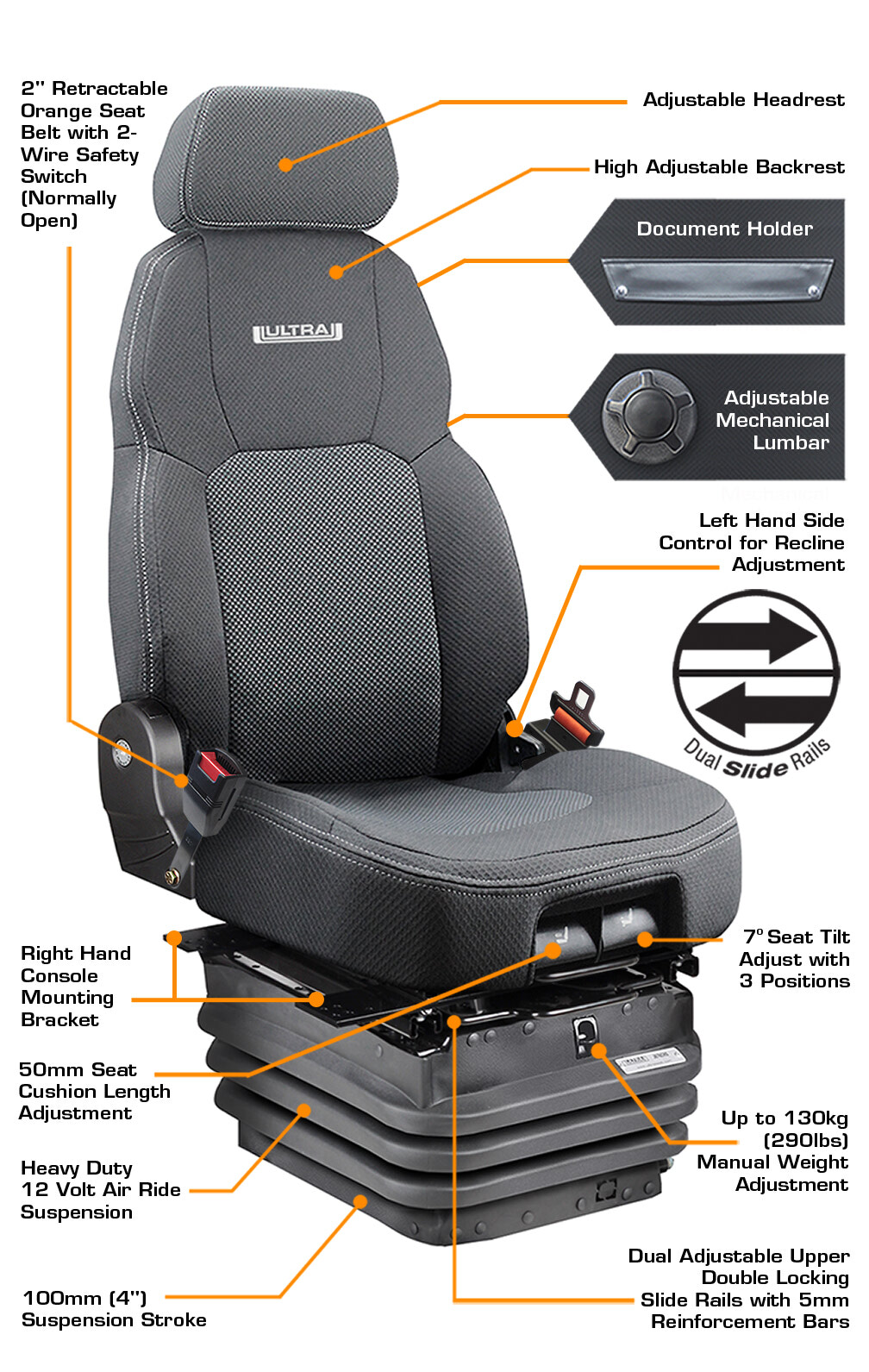

Features

High Adjustable Backrest
Left-Hand Side Control for Recline Adjustment
Adjustable Mechanical Lumbar
Document Holder
7° Seat Tilt Adjustment in 3 Positions
50mm Seat Cushion Length Adjustment
Heavy Duty Mechanical Suspension
Up to 130kg (290lbs) Manual Weight Adjustment
60mm (2.375”) Suspension Height Adjustment in 3 Positions
100mm (4”) Suspension Stroke
Adjustable Dual Upper Double Locking Slide
Rails with 5mm Reinforcement Bars

Bolt Pattern

260mm (10.25”) Side to Side
Front to Back (Various, See Bolt Pattern Download)
Z-Bar Mounting Brackets Shipped with Seat (See Z-Bar Dimensions Download for Mounting Options)

Industry Standards

Operator Seat Vibration: ISO 7096
Flammability: FMVSS 302
Seat Belt Anchor: ISO 6683

Replacement For

John Deere Models: 244L, 244P, 324L, 324P & 344P
John Deere Part Numbers: LW12215469 & LW12215467
