V876C CAT1 Caterpillar C Series Excavators Air Suspension

$0 Base Price
+ $NaN SELECT YOUR SEAT
+ $NaN SELECT YOUR SEAT BELT
+ $NaN Let us Help! What are you installing this seat in?
+ $0 Price Modifiers
$0 Subtotal


Features

  • High Adjustable Backrest

  • Left Hand Side Control for Recline Adjustment

  • Adjustable Mechanical Lumbar

  • Document Holder

  • 7° Seat Tilt Adjustment in 3 Positions

  • 50mm Seat Cushion Length Adjustment

  • Heavy Duty 24 Volt Air Suspension

  • Up to 190kg (418lbs) Manual Weight Adjustment

  • 100mm (4”) Suspension Stroke

  • Adjustable Upper and Lower Double Locking Slide Rails with 5mm  Reinforcement Bars

  • Adjustable Headrest

  • Joystick Console (POD) Brackets

Bolt Pattern

  • 280mm (11") Side to Side

  • 305mm (12") Front to Back

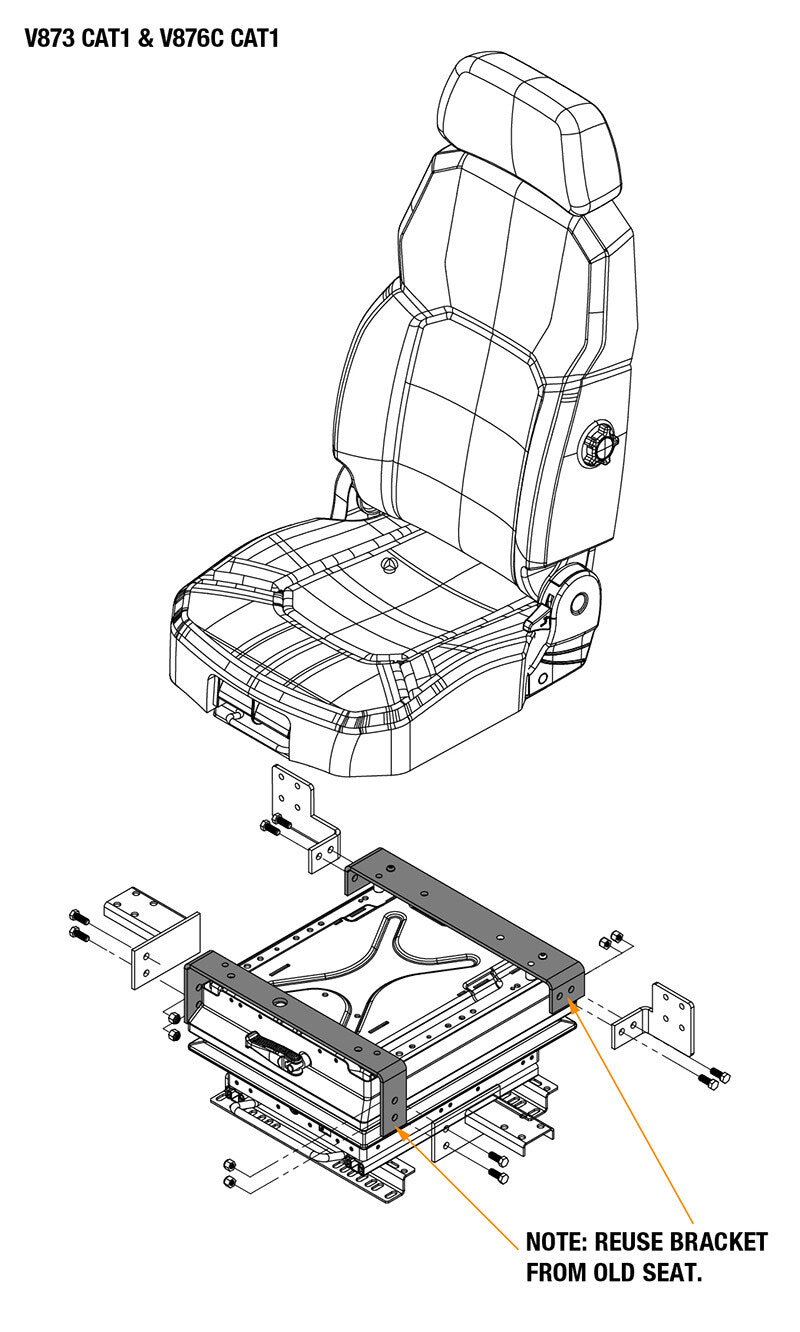

  • Z-Bar Mounting Brackets Shipped with Seat (See Z-Bar Dimensions Download for Mounting Options)

Industry Standards

  • Operator Seat Vibration: ISO 7096

  • Flammability: FMVSS 302

  • Seat Belt Anchor: ISO 6683

Replacement For

  • Caterpillar Suspension Group Number 164-0503, 188-0886, 164-0478, Caterpillar C Series Excavators
  • Caterpillar Seat Group Number 161-3771, 161-3772, 161-3781, 164-0502, 187-3388, 202-3062, 240-6995
