V876C CAT4 Caterpillar D Series Excavators Air Suspension Seat

SELECT YOUR SEAT

		$2,130.67 USD V876C CAT4 Black/Grey Cloth Air Suspension Seat 580374C24 Mechanical Suspension CAT Excavator Seat.

		None of the above This field is optional...

SELECT YOUR SEAT BELT

		$160.00 USD 2 inch Retractable Seat Belt 81065 Suited For Most Seat Models.

		$210.67 USD 3 inch Retractable Seat Belt 81067 Suited For Most Seat Models.

		None of the above This field is optional...

Let us Help! What are you installing this seat in?

$0 Base Price

+ $NaN SELECT YOUR SEAT

+ $NaN SELECT YOUR SEAT BELT

+ $NaN Let us Help! What are you installing this seat in?

+ $0 Price Modifiers

+ $0 Subtotal

Features

High Adjustable Backrest
Left Hand Side Control for Recline Adjustment
Adjustable Mechanical Lumbar
Document Holder
7° Seat Tilt Adjustment in 3 Positions
50mm Seat Cushion Length Adjustment
Heavy Duty 24 Volt Air Suspension
Up to 190kg (418lbs) Manual Weight Adjustment
100mm (4") Suspension Stroke
Adjustable Upper and Lower Double Locking Slide Rails with 5mm Reinforcement
Adjustable Headrest
Joystick Console (POD)
Z-Bar Mounting

Bolt Pattern

260mm (10.25”) Side to Side
Front to Back (Various, See Bolt Pattern Download)<

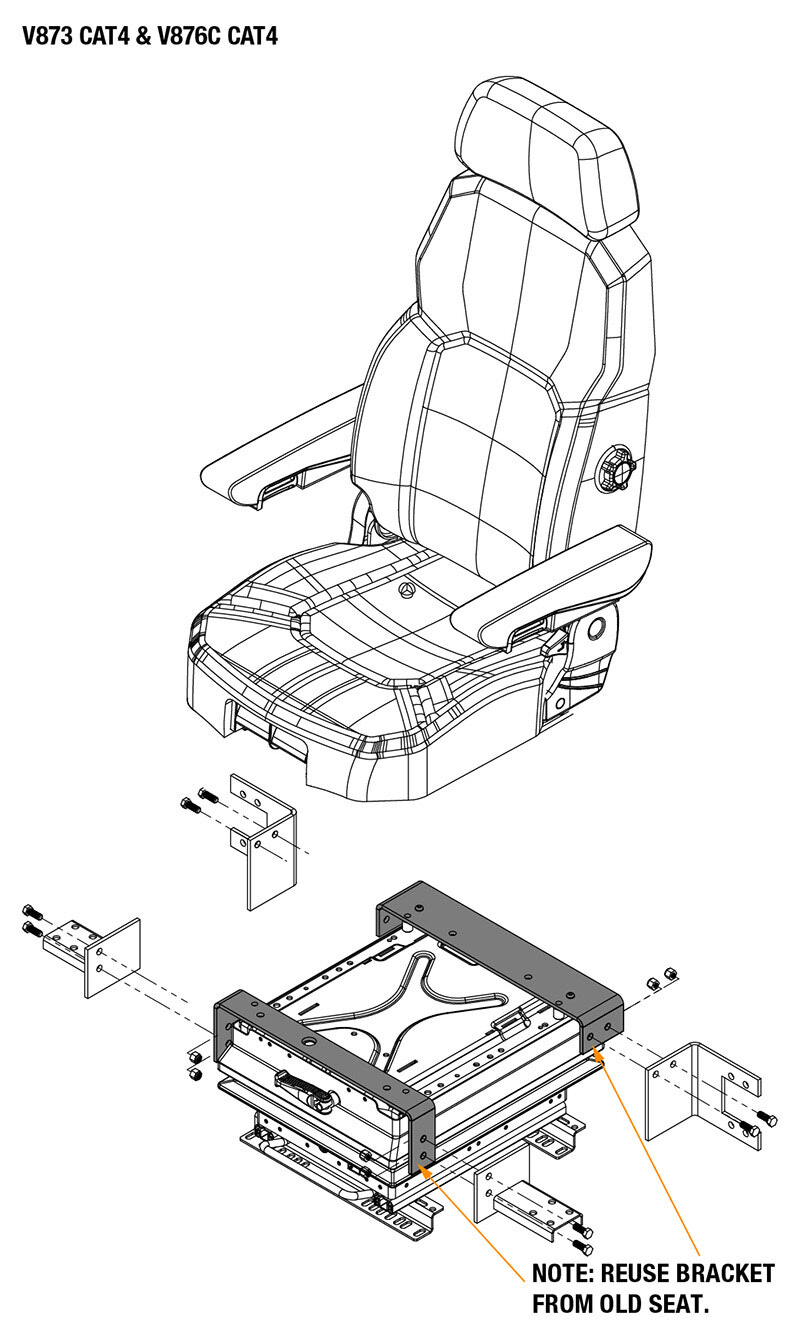

Z-Bar Mounting Brackets Shipped with Seat (See Z-Bar Dimensions Download for Mounting Options)

Industry Standards

Operator Seat Vibration: ISO 7096
Flammability: FMVSS 302
Seat Belt Anchor: ISO 6683

Replacement For

Caterpillar Suspension Group Number 229-9077
