V878C JD3 JS - John Deere Wheel Loader Seat with Joy Stick Steering
Features
- High Adjustable Backrest
- Adjustable Headrest
- Left-Hand Side Control for Recline Adjustment
- Document Holder
- Adjustable Mechanical Lumbar
- Double Dampers
- 7° Seat Tilt Adjustment in 3 Positions
- 50mm Seat Cushion Length Adjustment
- Heavy Duty 24 Volt Air Suspension
- Up to 190kg (418lbs) Manual Weight Adjustment
- 100mm (4”) Suspension Stroke
- Right-Hand Console Mounting Bracket
- Adjustable Upper Double Locking Slide Rails with 5mm Reinforcement Bars
- 3" Retractable Orange Seat Belt with 2 Wire Safety Switch (Normally Open)

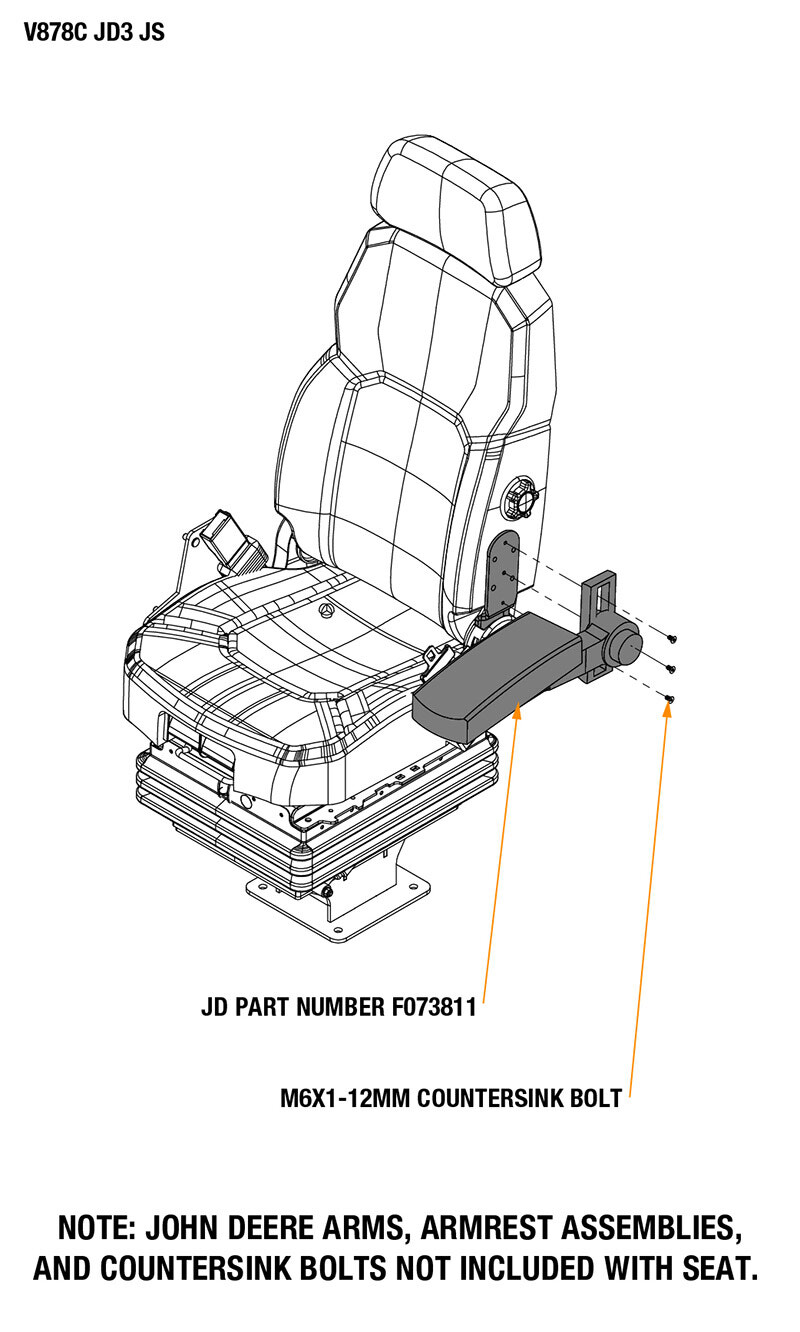

- Left Hand Arm Bracket for Joy Stick Steering Arm
Bolt Pattern
- Side to Side - 7"
- Front to Back - 7"
Industry Standards
-
Operator Seat Vibration: ISO 7096
-
Flammability: FMVSS 302
-
Seat Belt Anchor: ISO 6683
Replacement For
- John Deere Part Numbers: AT340282, AT449332, AT471180
- Wheel Loaders with Joystick Steering: 744K, 824K, 844K, 844K III
